Navigating the Intelligence Interface
The application uses a shared left navigation. Intelligence is a destination within it. The items below are common destinations; visibility depends on your role, project access, enabled features and profile setup.
Left navigation
| Item | What it shows |
|---|---|
| Dashboard | Volume, asset and scan totals for the selected period and project, with recent scans. |
| Intelligence | Your published profile, the coverage review, and assistant connections. |
| Videos | Recordings, with the number of assets found in each. |
| Assets | The gallery of individual readings, with an exceptions filter. |
| Projects | Sites and yards, their users and their integrations. |
A global search sits above the navigation and opens with Ctrl and K. Your account and sign-out are at the bottom of the sidebar, and the application version is shown beneath them.
The three filters
Dashboard, Videos and Assets share the same three controls across the top. They apply together, and getting an unexpected result is more often a filter than a data problem.
- Date range such as Sep 1st 2026 to Sep 4th 2026.
- Period such as This Month.
- Project, which limits everything below it to one site.

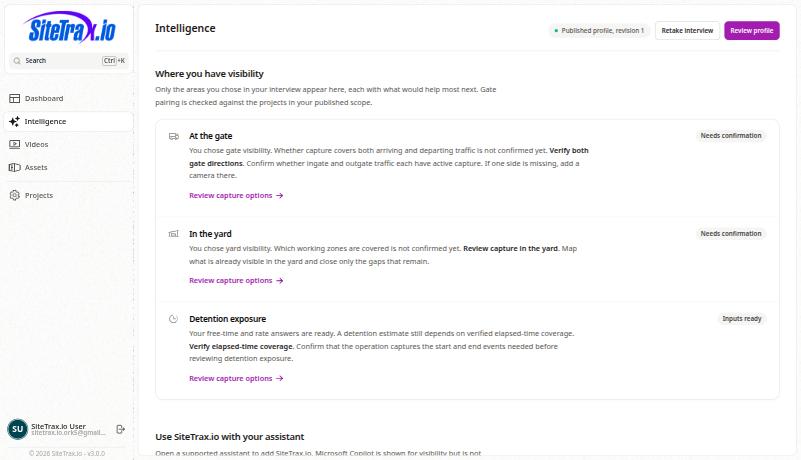

The Intelligence hub
Live application screenshot, captured 22 September 2026. The guidance and statuses shown are examples from this profile; yours depend on your answers and project scope. Select the image to view it at full size.
The hub has three parts.
- Profile status. The published revision number, with Retake interview and Review profile. If you have an edit in progress, the hub says so and offers Resume editing, and confirms your published profile stays active while you finish.
- Where you have visibility. Cards for supported areas you chose in the interview, each stating what would help most next and carrying a status such as Needs confirmation or Inputs ready. Gate pairing is checked against the projects in your published scope. These are guidance cards based on your answers and available configuration; a ready input does not certify complete camera coverage, complete observation history or a billable charge.

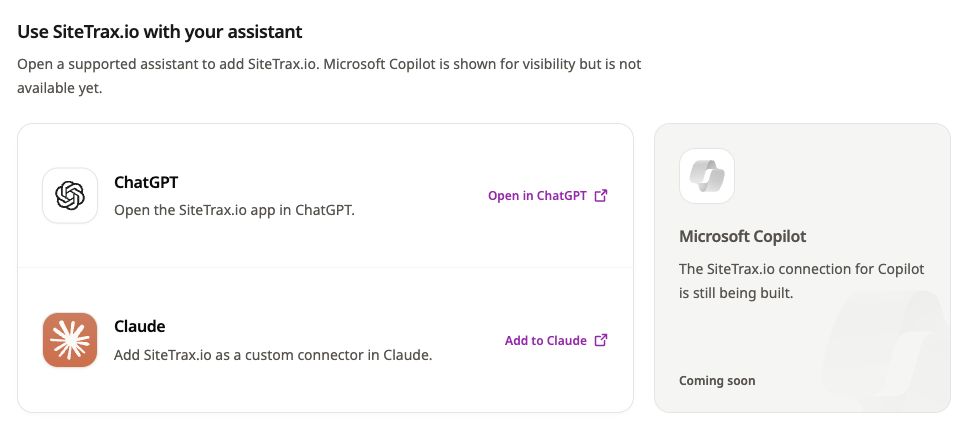

- The hub provides assistant setup entry points. A card opens setup but does not confirm installation or successful OAuth authorization. Complete your provider’s dedicated setup section, then verify access by asking the assistant to list the projects your account can access. A published profile is optional for ordinary MCP queries.
Assistant setup is documented in the dedicated provider sections.
Asset detail
Selecting an identifier opens the record behind a reading: asset ID, project, scan and processing times, asset type, status code and heading, with an image and location where available. Correct and Incorrect let you tell SiteTrax.io whether the reading matches the image, and the full payload is available underneath.
Deep links follow the pattern app.sitetrax.io/dashboard/assets/view/{asset_id}. An assistant that returns a link will use this form, and it opens the same record you would reach by clicking through the gallery.
